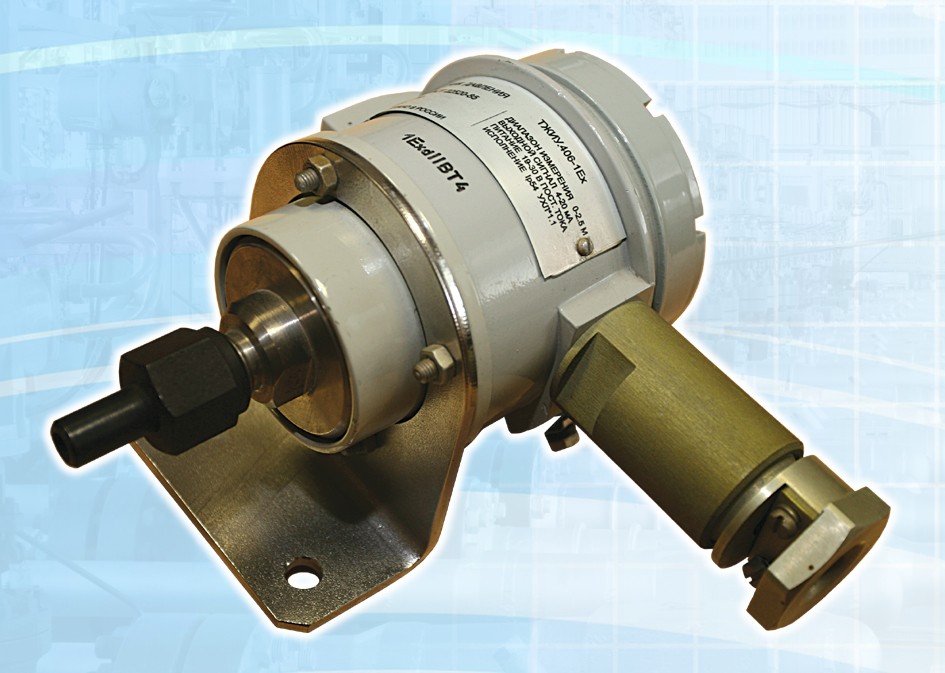

ТЖИУ406 overpressure transducer

Purpose

ТЖИУ406 overpressure transducers and of explosion-proof and non-explosion-proof version are meant for continuous converting of excess pressure of liquids and gases (ranges from 0-0.04 MPa to 0-25.0 MPa), non-aggressive to titanium alloys, unified DC output signal in monitoring and control systems.

Design features

• serially produced, explosion protection certificate received, "1ExdllVT4" explosion-proof markings are available, correspond to GOST 22782.0-81, GOST 22782.6-81, type of explosion protection and explosion-proof according to GOST 22782.6-81;
• according to the degree of protection against dust and water - IP65 according to GOST 14254-80;
• built-in electronic damper of measured pressure ripple;
• overvoltage protection device;
• capability of reconfiguring measurement limits (multi-band version);
• ТЖИУ406 overpressure transducer is registered in the State Register of measuring devices under # 18510-04 and is approved for use in Russia.

Specifications

Range of measured pressure	MPa	0-0,04...0-25,0
DC output signal	mA	4-20, 0-5
Maximum permissible error	%	±0,15
Additional error in operating temperature range	%/10°С	±0,1
Operating temperature range	°C	-60...+80
Life time	years	14
Warranty lifetime	years	4,5
Calibration interval	years	no more than 2
Weight without bracket	kg	2,8

Transducer power supply

Transducers are energized from a DC source.

Output signal, mA	Voltage, V	Load resistance, Ω
0...5	19...48	<=2500
4...20	9...48	Rн<=(Upow-Umin)/0,02

Diagram of external electrical connections of transducer

four-wire (0-5 mA)	two-wire (4-20 mA)

R_н - load resistance (including input resistance) [Ω]; U_pow - supply voltage [V]; U_min - minimum supply voltage [V]; G - power source.



Measurement range

A	01	02	03	04	05	06	07	08	09	10	11	12	13	14	15
kgf/cm2	0,4*	0,6*	1,0	1,6	2,5	4,0	6,0	10	16	25	40	60	100	160	250
A	16	17	18	19	20	21	22	23	24	25
MPa	0,4	0,6	1,0	1,6	2,5	4,0	6,0	10	16	25
A	26	27	28	29	30
kPa	40*	60*	100	160	250

Basic error

V	1	2	3	4	5
<=(%)	±0,15	±0,2	±0,25	±0,4	±0,5

Range of operating ambient temperature

C	1	2	3	4	5	6
°С	-60...+50	+5...+50	-50...+70	-40...+80	-30...+50	-10...+55

Additional temperature error

D	1	2	3	4	5	6
<=(%)	±0,1	±0,125	±0,15	±0,2	±0,25	±0,35

Output signal range

E	1	2	7	8
mA	0-5	4-20	0-5	4-20
V	12...30	12...30	19...48	9...48

NOTES. For a transducer with several measurement ranges, after specifying the code of the measurement range put the letter "П" (tunable).

Designation of technical specification - ТЖИУ.406233.001TU.

When the manufacturer releases transducer with multiple measuring ranges, it is configured on the upper measurement limit selected according to the Customer's order from the values shown in the table below:

Designation of version in DD	Upper measurement limits
	kPa	MPa	kgf/cm2
ТЖИУ.406233.001	—	2,5; 4,0; 6,0; 10,0	25,0; 40,0; 60,0; 100,0
ТЖИУ.406233.001-01	—	0,6; 1,0; 1,6; 2,5	6,0; 10,0; 16,0; 25,0
ТЖИУ.406233.001-04	—	6,0; 10,0; 16,0; 25,0	60,0; 100,0; 160,0; 250,0
ТЖИУ.406233.001-06	60,0; 100,0; 160,0	—	0,6; 1,0; 1,6
ТЖИУ.406233.001-07	—	0,16; 0,25; 0,40; 0,60	1,6; 2,5; 4,0; 6,0
ТЖИУ.406233.008-11	16,0; 25,0; 40,0; 60,0	—	0,16; 0,25; 0,40; 0,60
ТЖИУ.406233.008-14	6,0; 10,0; 16,0	—	0,06; 0,10; 0,16
ТЖИУ.406233.001-12	40,0; 60,0; 100,0	—	0,4; 0,6; 1,0
ТЖИУ.406233.008-25	16,0; 25,0; 40,0; 60,0	—	0,16; 0,25; 0,40; 0,60
ТЖИУ.406233.008-26	6,0; 10,0; 16,0	—	0,06;0,10; 0,16

Example of designation of single-band transducer for its order and in other product documentation where it can be used:

for general industrial transducer with explosion-proof version - "Overpressure transducer, explosion-proof, with upper measurement limit of 100 kPa, with limit of basic reduced measurement error ± 0.2%, with operating temperature range from minus 30 to plus 50 ° C, with limit of tolerable additional reduced temperature measurement error ± 0.1%/10°C, with output current signal of 4 to 20 mA, is denoted as: ТЖИУ406 - 1Eh - 28 - 2 - 5 - 1 - 2"

Overall, mounting and connection dimensions

1 - housing, 2 - pressure input, 3 - cap, 4 - fittings for cable entry

SET OF DELIVERY: transducer, passport spare parts kit, user manual (1 copy per one batch of transducers). The following can be supplied as an option: spare parts, tool kit, user manual.

ТЖИУ.406233.001RE user manual, ТЖИУ406, ТЖИУ406V, ТЖИУ406IV pressure transducers pdf, 7.74 Mb

ТЖИУ.406233.006RE user manual, ТЖИУ406A absolute pressure transducer pdf, 3.2 Mb
